Name: TRIUMPH
Type: Aircraft Carrier
Keel: 27/01/1943
Launched: 02/10/1944
Completed: 09/04/1946
Builder: R & W Hawthorn, Leslie & Co Ltd
Yard: Hebburn
Yard Number: 662
Dimensions: 13350disp - 18200disp, 630.0 x 80.3 x 18.5(draft)ft
Engines: 2 x Steam turbines, Parsons type, SR Geared , 40000shp
Engines by: R & W Hawthorn, Leslie & Co Ltd, Newcastle
Propulsion: 2 x Screws, 25.0knots
Construction: Steel
Armament: 6 x 4 x 2pdr AA, 21 x 1 x 40mm AA guns; 48 x aircraft & 1 x catapult
History:
09/04/1946 British Royal Navy
12/1981 Broken up
Comments: A Light Fleet Carrier of the Colossus Class
1950: Heavily involved in the Korean War
1956 to 1965: Converted into a Heavy Repair Ship & allocated pennant A108
12/1981: Broken up at Castellon, Spain


Above photo is courtesy of Jim Bryce

Above photo is courtesy of Jim Bryce

Above: WEARMOUTH tows TITAN II past VENGEANCE (back) & TRIUMPH (front). Photo is courtesy of Kevin Blair
CLICK to enlarge/BACK to return

Above photo, dated 1949, is courtesy of Kevin Blair. CLICK to enlarge/BACK to return

Above photo, dated 1949, is courtesy of Kevin Blair. CLICK to enlarge/BACK to return

Above photo is copyright of the Imperial War Museum

Above photo is copyright of the Imperial War Museum

Above photo is courtesy of Photoship

Above photo is copyright of the US Navy

Above photo is courtesy of J Bryce

Above photo, dated 29/05/1978, is copyright of Dennis Maccoy

Above photo, dated 29/05/1978, is copyright of Dennis Maccoy

Above photo is courtesy of Photoship

Above photo, taken at Castellon in 03/1982, is courtesy of Photoship

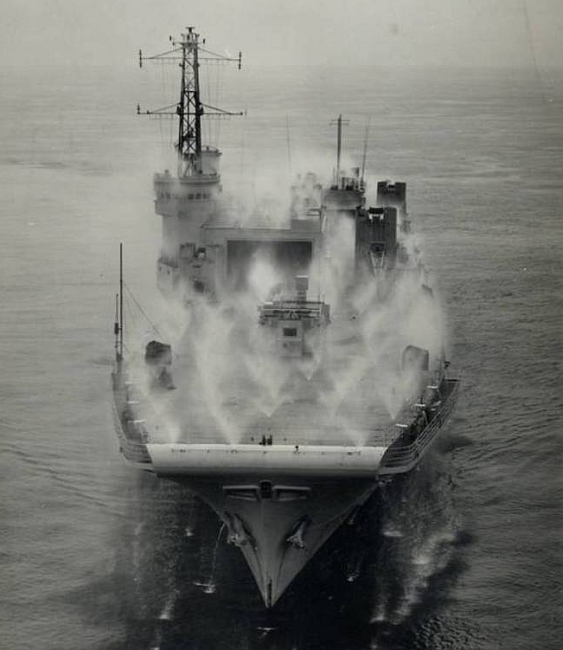

In full NBC wash down. Photo is courtesy of Photoship
