Name: SUSSEX
Type: Cruiser
Keel: 01/02/1927
Launched: 22/02/1928
Completed: 19/03/1929
Builder: R & W Hawthorn, Leslie & Co Ltd
Yard: Hebburn
Yard Number: 544
Dimensions: 9830disp - 13315disp, 595.0 x 66.0 x 17.0(draft)ft
Engines: 4 x Steam turbines, SR geared, Parsons type, 80000shp
Engines by: R & W Hawthorn, Leslie & Co Ltd, Newcastle
Propulsion: 4 x Screws, 32.25knots
Construction: Steel
Armament: 4 x 2 x 8.0ins, 8 x 1 x 6pdr, 4 x 1 x 4.0ins, 2 x 1 x 2pdr guns;
2 x 4 x 21.0ins torpedoes; 1 x aircraft & catapult; (later: 3 x aircraft);
(by 1945: 3 x 2 x 8.0ins; 4 x 2 x 4ins AA, 4 x 8 x 2pdr AA, 26 x 20mm AA guns)
History:
19/03/1929 British Royal Navy
03/01/1950 Broken up
Comments: Member of the Admiralty's London Class of heavy cruisers
18/09/1940: Bombed whilst undergoing refit at Glasgow. Extensive damage
08/1942: Returned to service
03/01/1950: Handed over to BISCO - British Iron & Steel Corporation
23/02/1950: Allocated to WH Arnott, Young & Co Ltd at Dalmuir

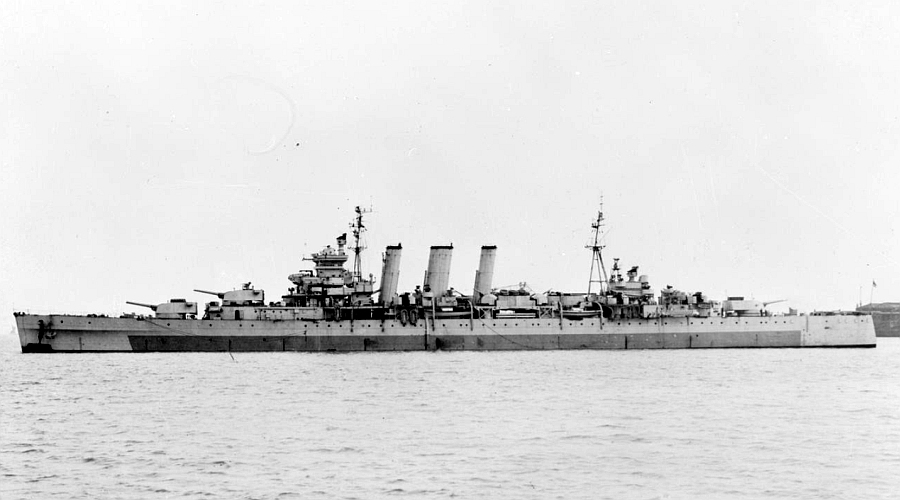

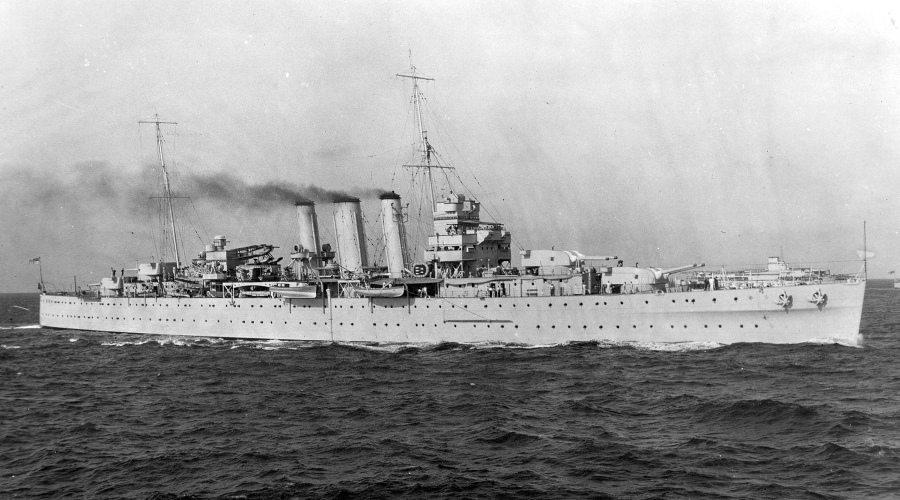

Above photo is courtesy of Kevin Blair

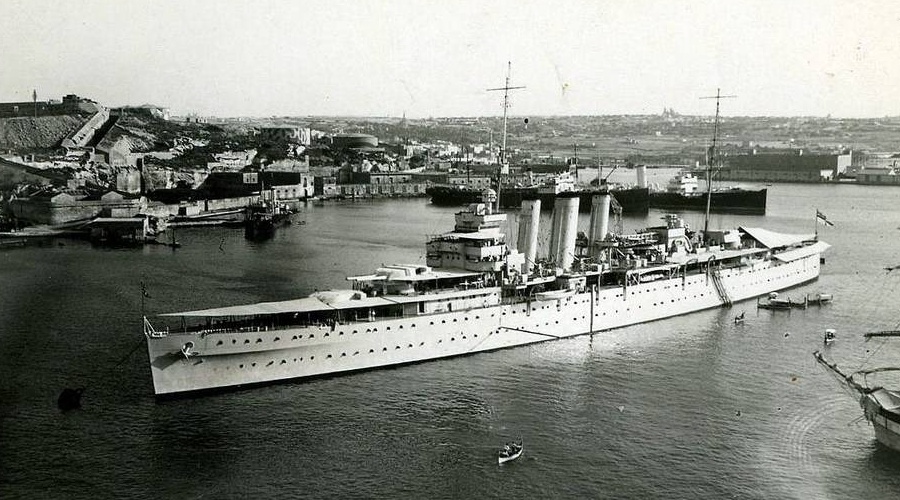

Above photo is courtesy of Kevin Blair

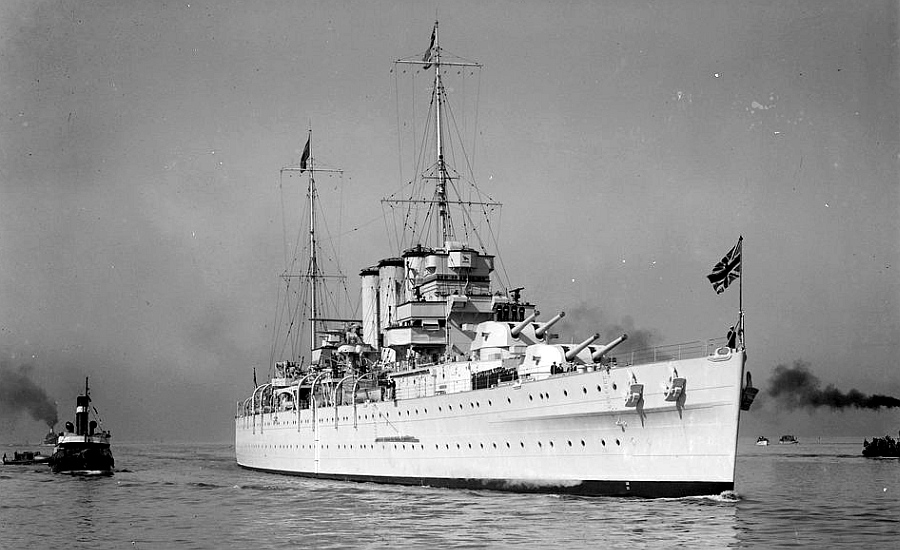

Above photo is copyright of the Imperial War Museum. CLICK to enlarge/BACK to return

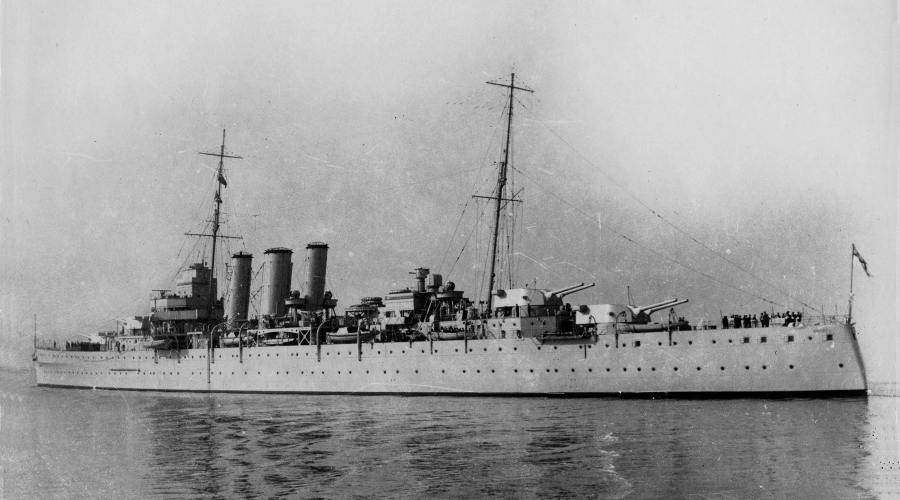

Above photo is courtesy of Richard Cox

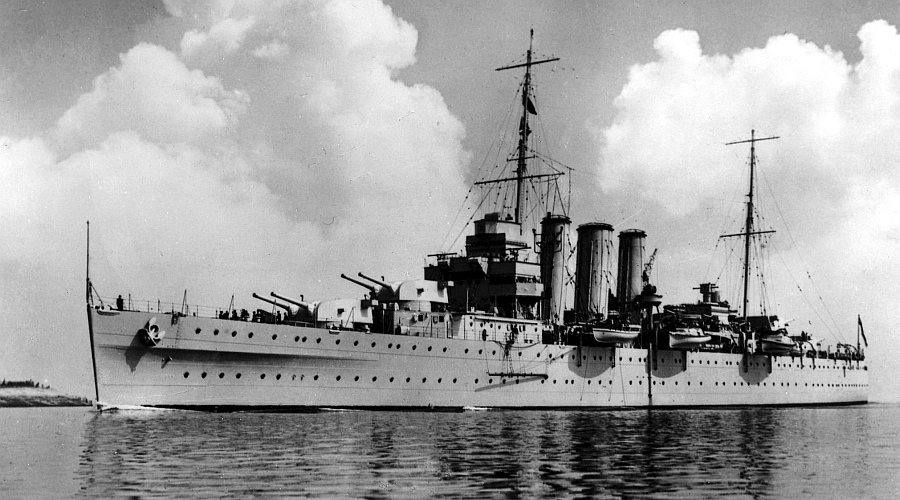

Above photo is copyright of Allan C Green

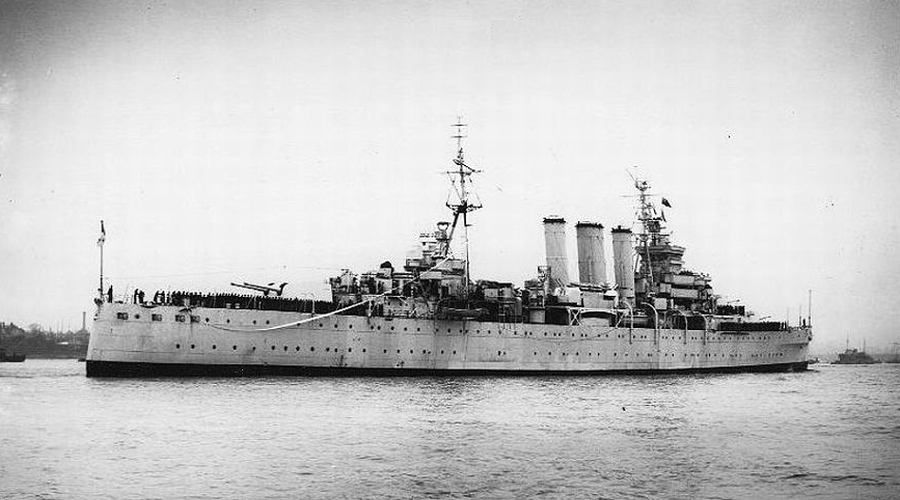

Above photo is courtesy of Photoship

Above photo is courtesy of Kevin Blair. CLICK to enlarge/BACK to return

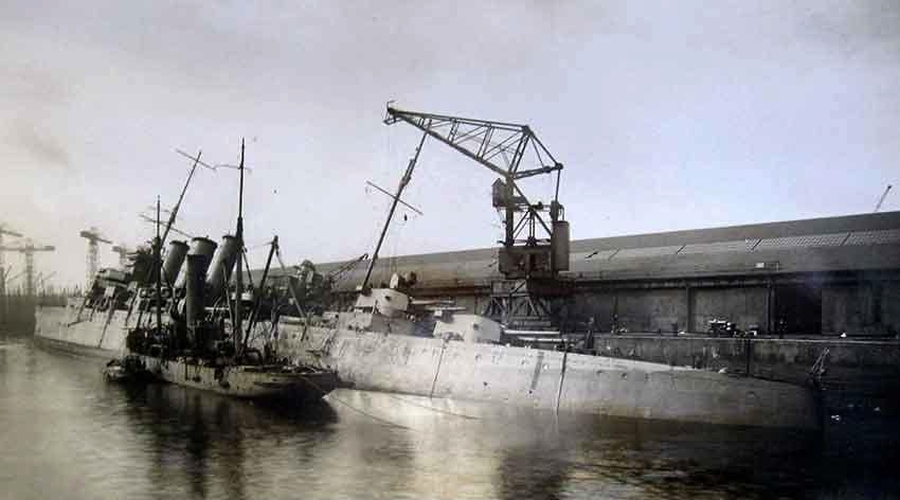

Above photo, showing her after damage at Glasgow, is courtesy of Stuart Cameron

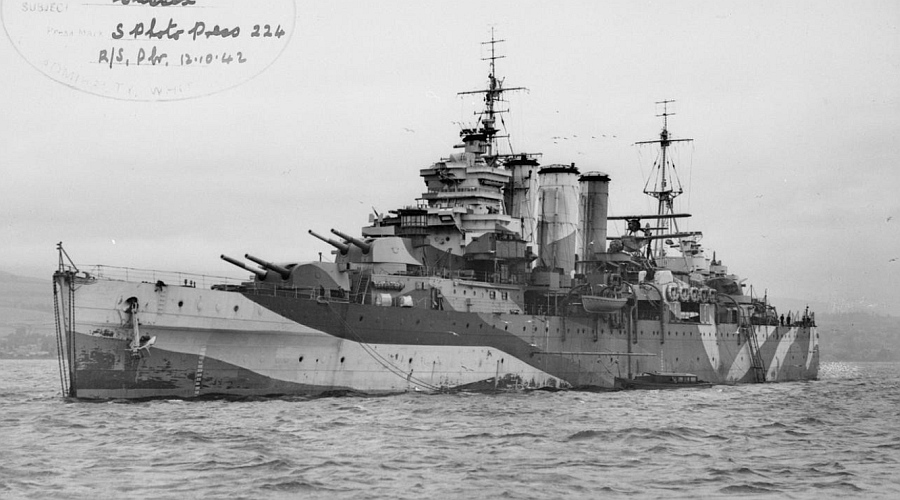

Above photo is copyright of the Imperial War Museum

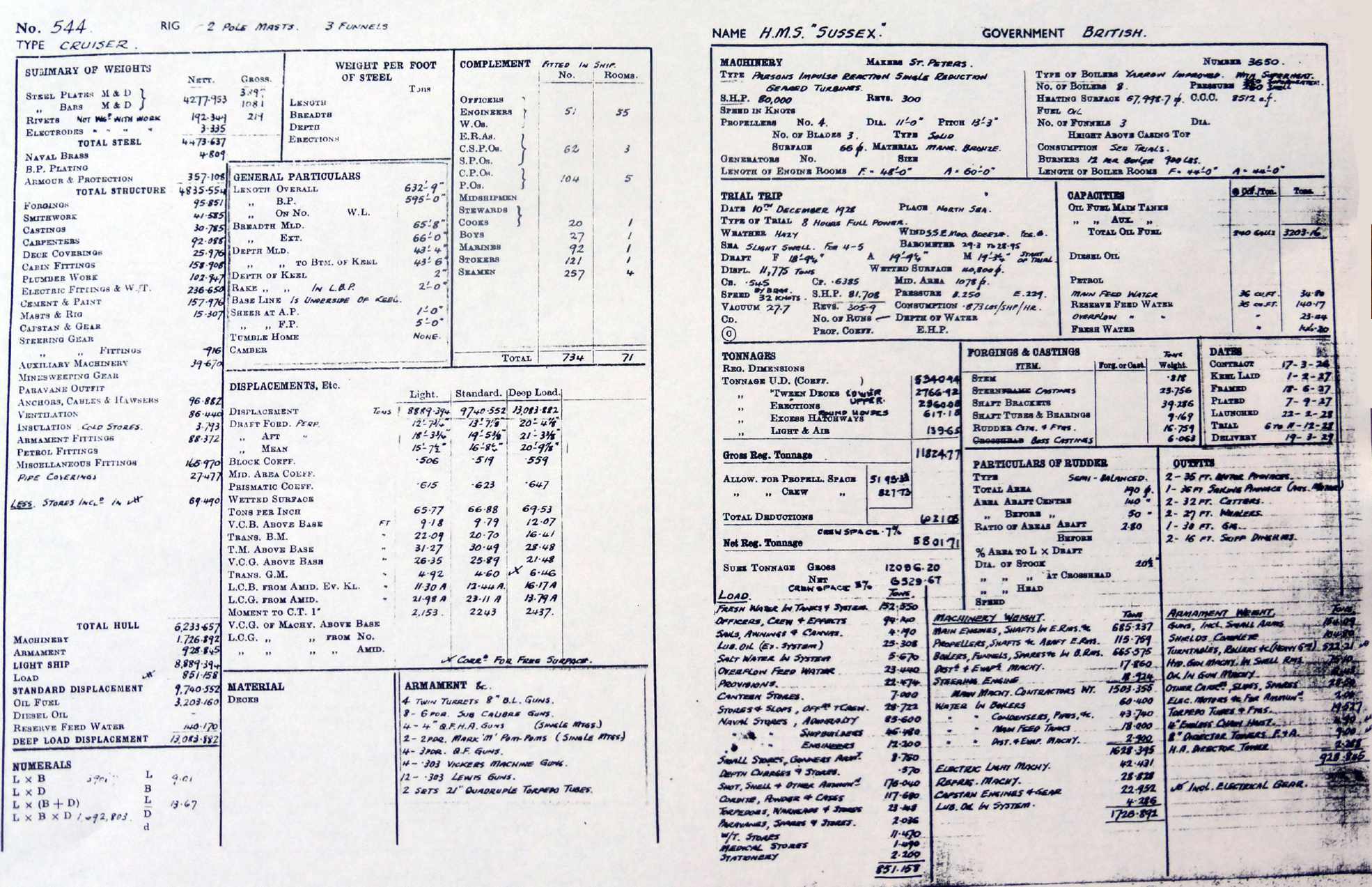

Copied and digitised by Terry Summerson from the original Shipyard Data Books. Click HERE to enlarge

Click on enlarged image to magnify even further. Use Browser BACK button to return

This record is now held by Tyne and Wear Archive Services
