Name: SPARTAN
Type: Cruiser
Keel: 12/1889
Launched: 25/02/1891
Completed: 02/1892
Builder: Sir WG Armstrong, Mitchell & Co Ltd
Yard: Elswick
Yard Number: 565
Dimensions: 3600disp, 300.0 x 43.4 x 17.4(draft)ft
Engines: 2 x VT3cyl (33.5, 49 & 74 x 33ins), 5500ihp to 9000hp
Engines by: Maudslay, Sons & Field, Lambeth
Propulsion: 2 x Screws, 20.0knots
Construction: Steel
Armament: 2 x 1 x 6.0ins QF, 6 x 1 x 4.7ins, 8 x 1 x 6pdr guns;
4 x 1 x 14.0ins torpedoes
History:
02/1892 British Royal Navy
1921 Renamed DEFIANCE II
26/06/1931 Broken up
Comments: Member of the Apollo Class
1907: Tender to DEFIANCE at Devonport

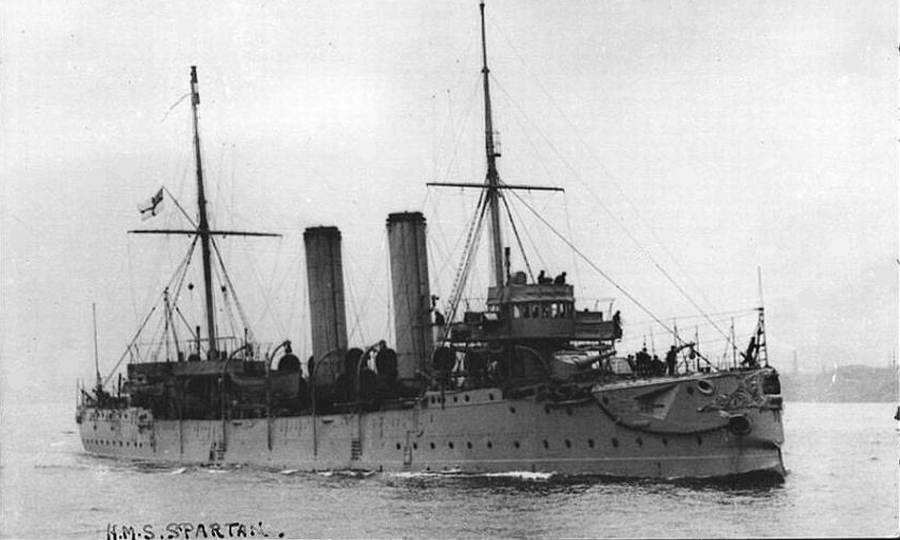

Above photo courtesy of Kevin Blair

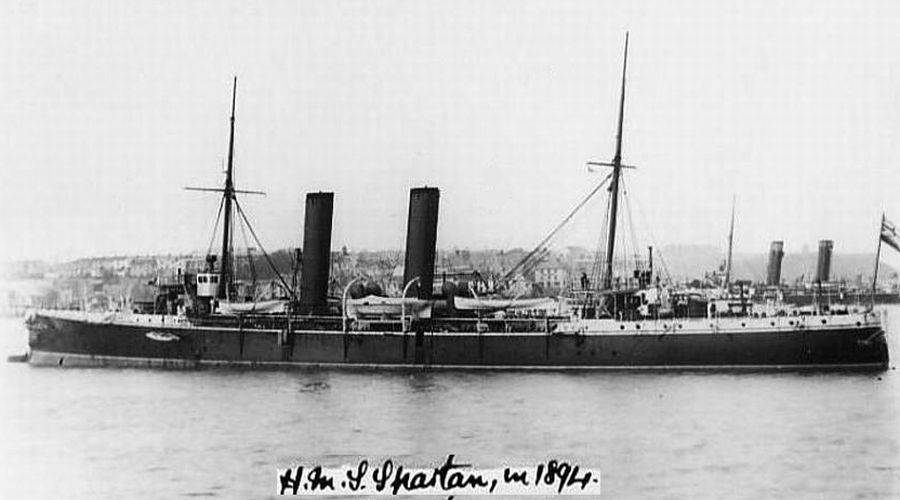

Above photo courtesy of Photoship

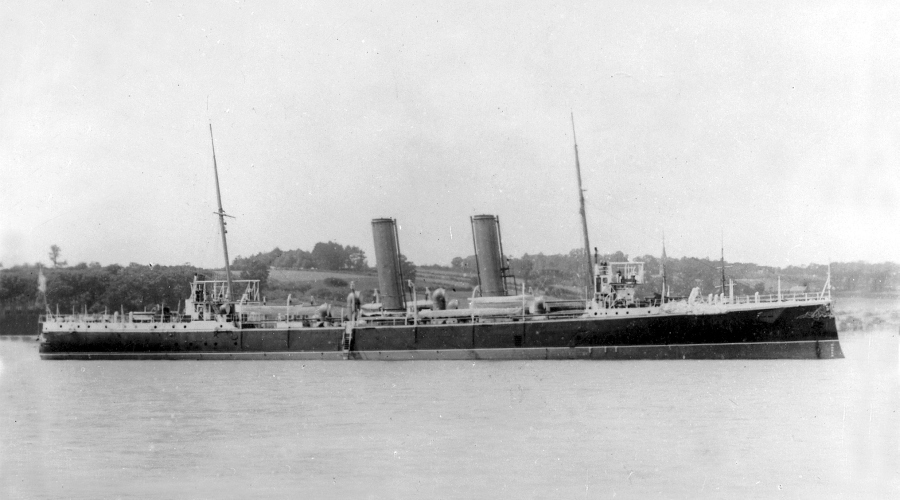

Above photo courtesy of Photoship

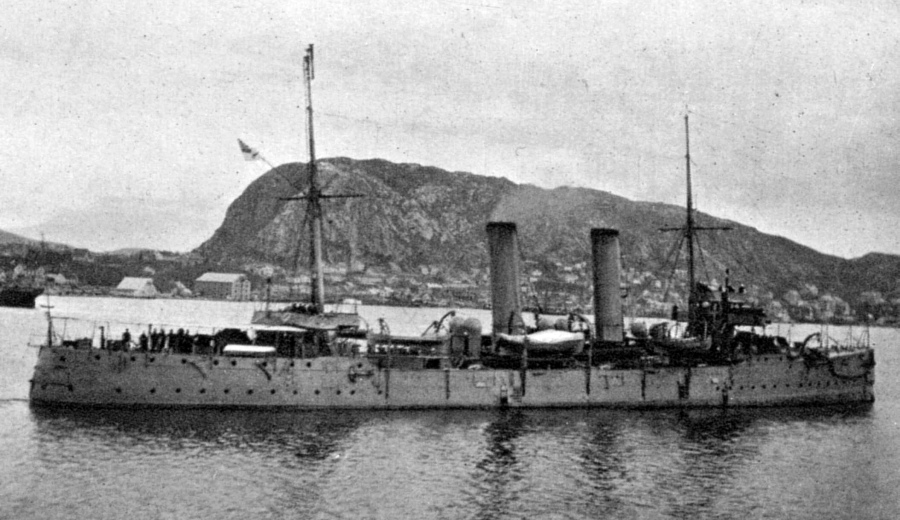

Above photo courtesy of Photoship

Brassey's illustration of the Apollo class 1897
