Name: HATSUSE
Type: Battleship
Keel: 10/01/1898
Launched: 27/06/1899
Completed: 18/01/1901
Builder: Armstrong, Whitworth & Co
Yard: Elswick
Yard Number: 680
Dimensions: 14312disp, 400.0 x 76.5 x 27.0(draft)ft
Engines: 2 x VT3cyl (34, 53 & 84 x 48ins), 14500ihp
Engines by: Humphrys, Tennant & Co, Deptford
Propulsion: 2 x Screws, 18.0knots
Construction: Steel
Armament: 2 x 2 x 12.0ins, 14 x 1 x 6.0ins QF, 20 x 1 x 3ins QF, 8 x 1 x 3pdr QF;
4 x 1 x 2.5pdr QF guns; 4 x 18.0ins torpedoes (submerged broadside)
History:
18/01/1901 Imperial Japanese Navy
15/05/1904 Sank
Comments: 15/05/1904: Mined & sunk off Port Arthur during the Russian-Japanese War


Above photo is courtesy of Photoship

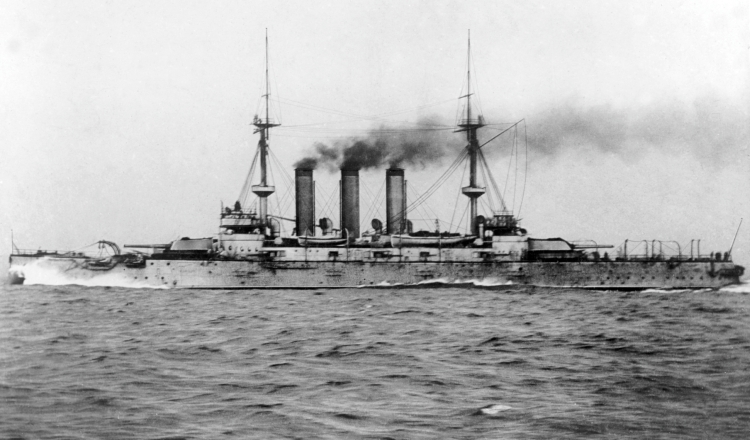

Above photo is courtesy of Photoship

Above photo is copyright of the Imperial War Museum. CLICK to enlarge/BACK to return

Above photo is copyright of the Imperial War Museum. CLICK to enlarge/BACK to return

Above photo is courtesy of Photoship

Above photo is courtesy of Photoship
