Name: | GONCALHO VELHO |
Type: | Second Class Aviso - Sloop |
Keel: | 09/10/1931 |
Launched: | 03/08/1932 |
Completed: | 01/03/1933 |
Builder: | R & W Hawthorn, Leslie & Co Ltd |
Yard: | Hebburn |
Yard Number: | 583 |
Dimensions: | 1155disp - 1413disp, 250.0 x 35.5 x 9.6(draft)ft |
Engines: | 2 x Steam turbines, SR geared, Parsons type, 2000hp |
Engines by: | R & W Hawthorn, Leslie & Co Ltd, Newcastle |
Propulsion: | 2 x Screws, 17.5knots |
Construction: | Steel |
Armament: | 3 x 1 x 4.7ins QF, 2 x 1 x 2pdr guns |
History: | |
01/03/1933 | Portuguese Navy |
1961 | Broken up |
Comments: | Lead ship of the GONCALHO VELHO Class |
Designed to operate in the Portuguese Colonies. |

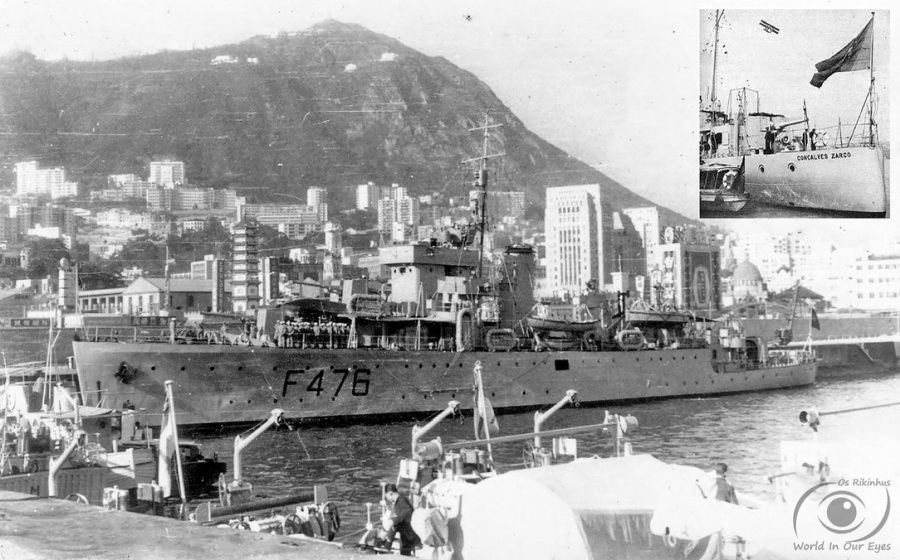

Above photo is courtesy of Kevin Blair. CLICK to enlarge/BACK to return

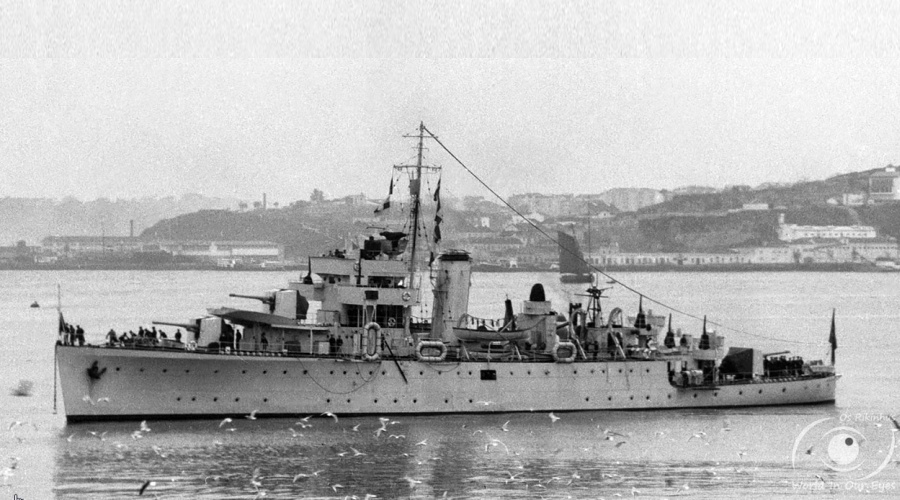

Above photo is courtesy of Os Rikinhus. CLICK to enlarge/BACK to return

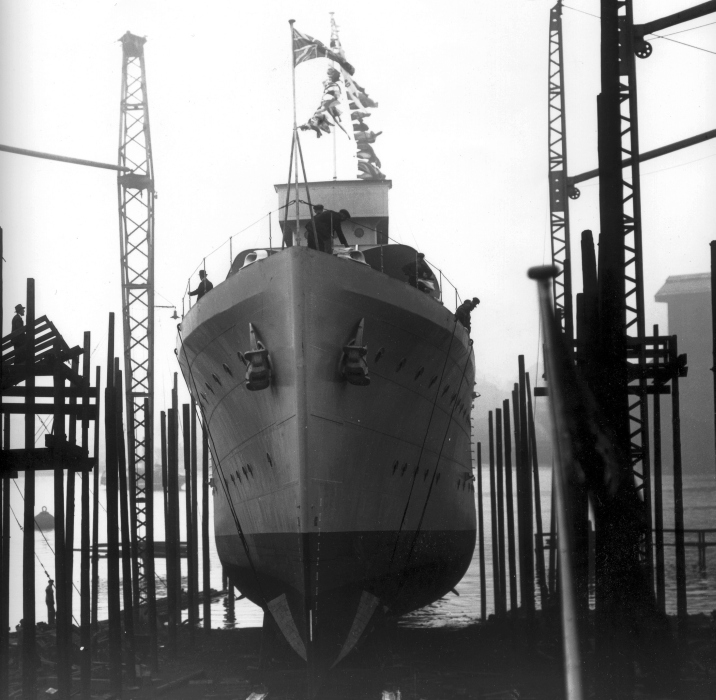

Above photo is courtesy of Photoship

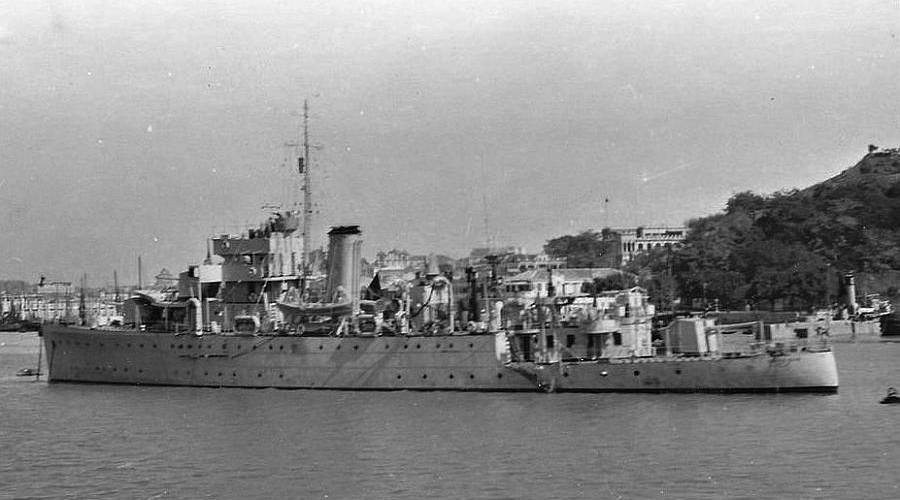

Above photo is courtesy of Photoship

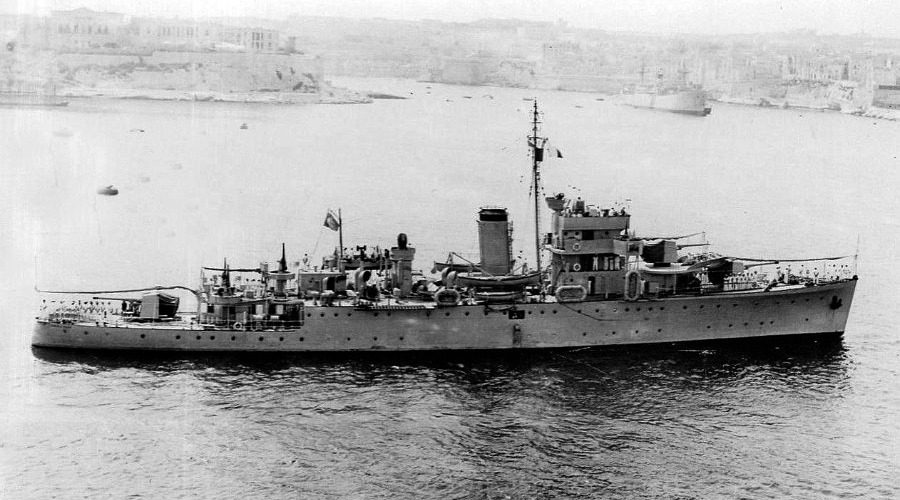

Above photo is courtesy of Os Rikinhus

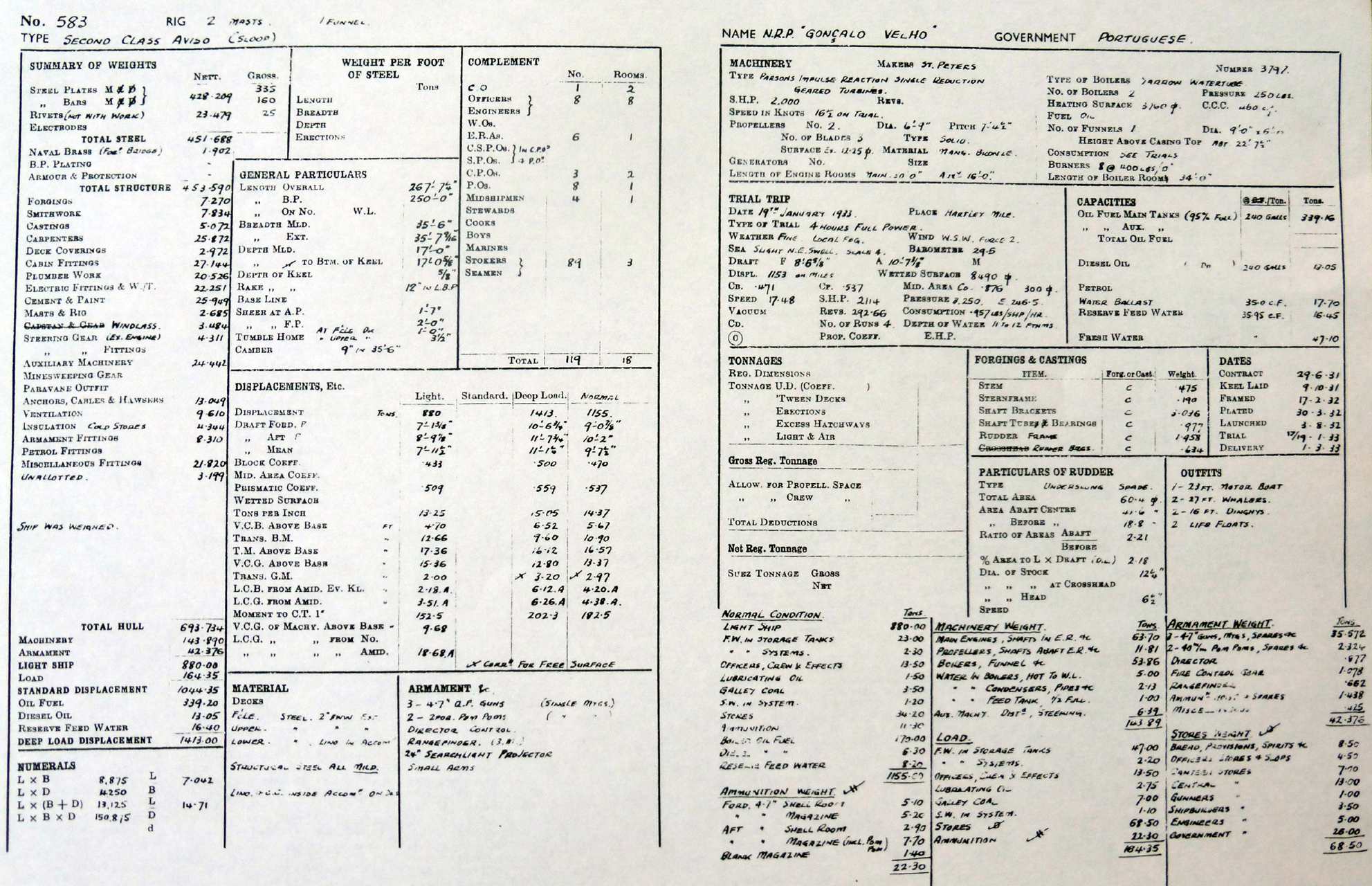

Copied and digitised by Terry Summerson from the original Shipyard Data Books. Click HERE to enlarge.
Click on enlarged image to magnify even further. Use Browser BACK button to return.
This record is now held by Tyne and Wear Archive Services.
