Name: CHIH YUAN or CHIH YUEN
Type: Cruiser
Keel: 20/10/1885
Launched: 29/09/1886
Completed: 23/07/1887
Builder: Sir WG Armstrong, Mitchell & Co Ltd
Yard: Elswick
Yard Number: 493
Dimensions: 2310disp, 250.0 x 38.0 x 15.0(draft)ft
Engines: 2 x T3cyl (30, 44 & 68 x 36ins), 5500ihp
Engines by: R & W Hawthorn, Leslie & Co Ltd, St Peter's, Newcastle
Propulsion: 2 x Screws, 18.0knots
Construction: Steel
Armament: 1 x 2 x 8.2ins, 1 x 8.2ins, 2 x 1 x 6.0ins, 8 x 1 x 6pdr QF, 2 x 1 x 3pdr QF guns;
4 x 1 x 14.0ins torpedoes (fwd, aft & broadside)
History:
23/07/1887 Chinese Navy
17/09/1894 Sank
Comments: Sister to CHING YUAN
Ordered for the Peiyang Fleet at a cost of £285,000
17/09/1894: Sunk at the Battle of the Yalu River, against the Imperial Japanese Navy
She was sunk by the Elswick cruiser YOSHINO

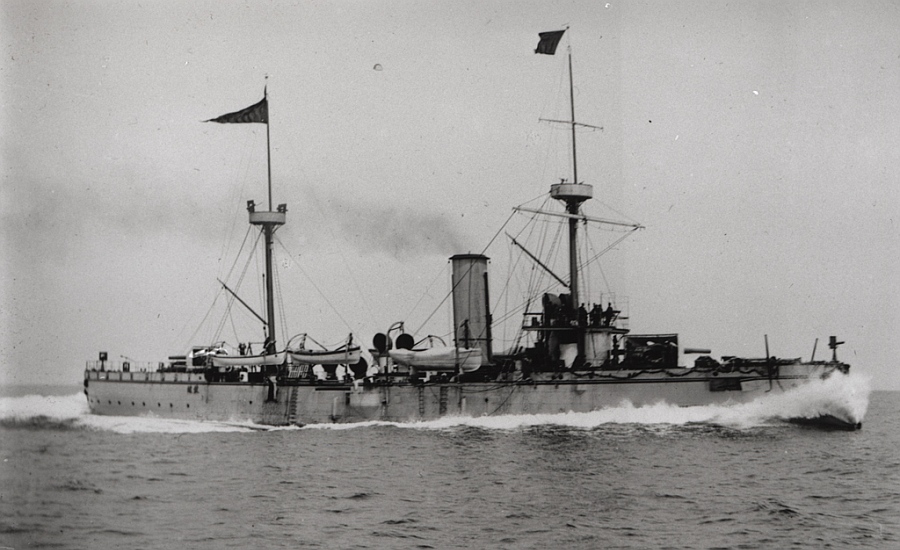

Above photo is copyright of Tyne & Wear Archives

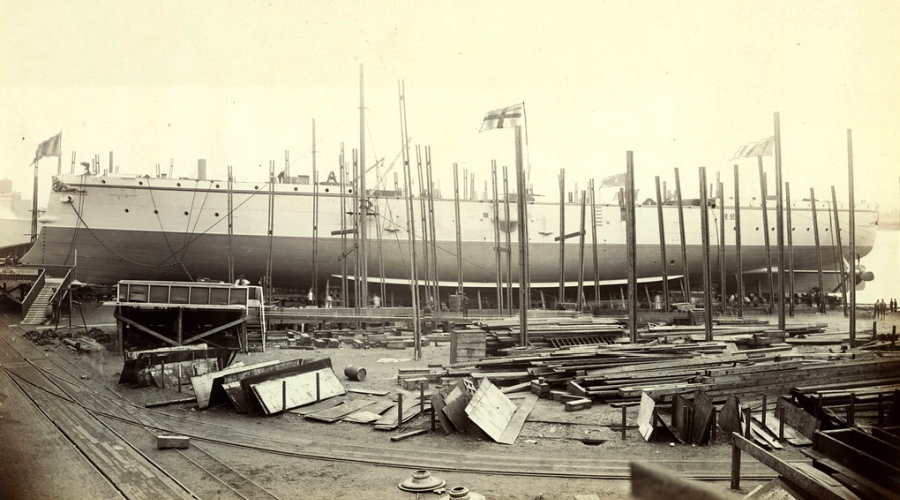

Above photo is copyright of Tyne & Wear Archives

Above photo is copyright of Tyne & Wear Archives

Above photo is copyright of Tyne & Wear Archives

Above photo is copyright of Tyne & Wear Archives

Above image of CHING YUAN / CHIH YUAN is courtesy of Photoship

Above plan of CHING YUAN / CHIH YUAN is copyright of Peter Brook
